Liquid Level Transmitter
■ Diffuse silicon sensor
■ Probe input measurement method, simple and convenient installation
■ For liquid level measurement
■ Multi-protection structure design, high protection capability
■ Liquid crystal display available
■ Variety of styles to meet the requirements of various industrial applications
■ Anti-corrosive stainless steel material suitable for a wide range of applications
Product Description
Performance Parameters
| Measurement Range | 0~1m…20m H2O |
| Output Signal | 4~20mA@HART
（Other ranges and output signals can be customized） |
| Power Supply | 24VDC |
| Precision | 0.5%FS (Quintessential) |
| Operating Temperature | -20℃ ~70°C |
| Temperature Drift | 1.5%FS(Compensated temperature range) |
| Medium Temperature | 0℃ ~85℃ |
| Shell Material | SUS 304、316L stainless steels |
| Core Material | SUS 316L stainless steels |
| Protection Class | IP68 |

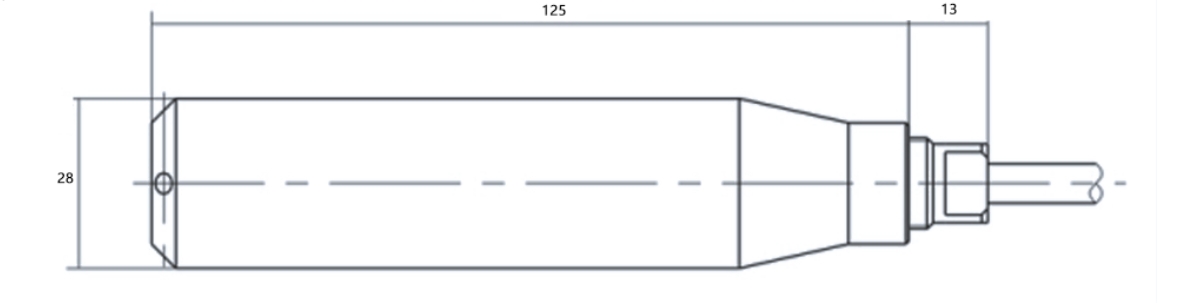

External Dimensions
Unit: mm
