MKZ-06 Gasket RTD
Gasket type
Copper probe, fast heat conduction, superconducting heat transfer, rapid thermal response, accurate measurement, probe size can be customized
Product Description
Performance Parameter
| Performance Parameter | |
| Product Name | MKZ-06 Gasket RTD |
| Index Number | PT100 PT1000 |
| Temperature Range | -50-200℃(Three Core Tetrafluorowire) -50-400℃(Metal Shielded Wire) |
| Lead Material | Three core PTFE silver plated shielding wire, metal shielding wire |
| Lead Length | On-demand customization |
| Protective Tube Material | copper |
| Process Connection | Round mounting hole, cable tie |
| Connection Mode | Default U-shaped terminal (pin, bare wire can be customized) |
| Common Gasket Bore | 4mm 5mm 6mm 8mm (customizable) |
| Accuracy Level | 1/10B 1/3B A B 2B |

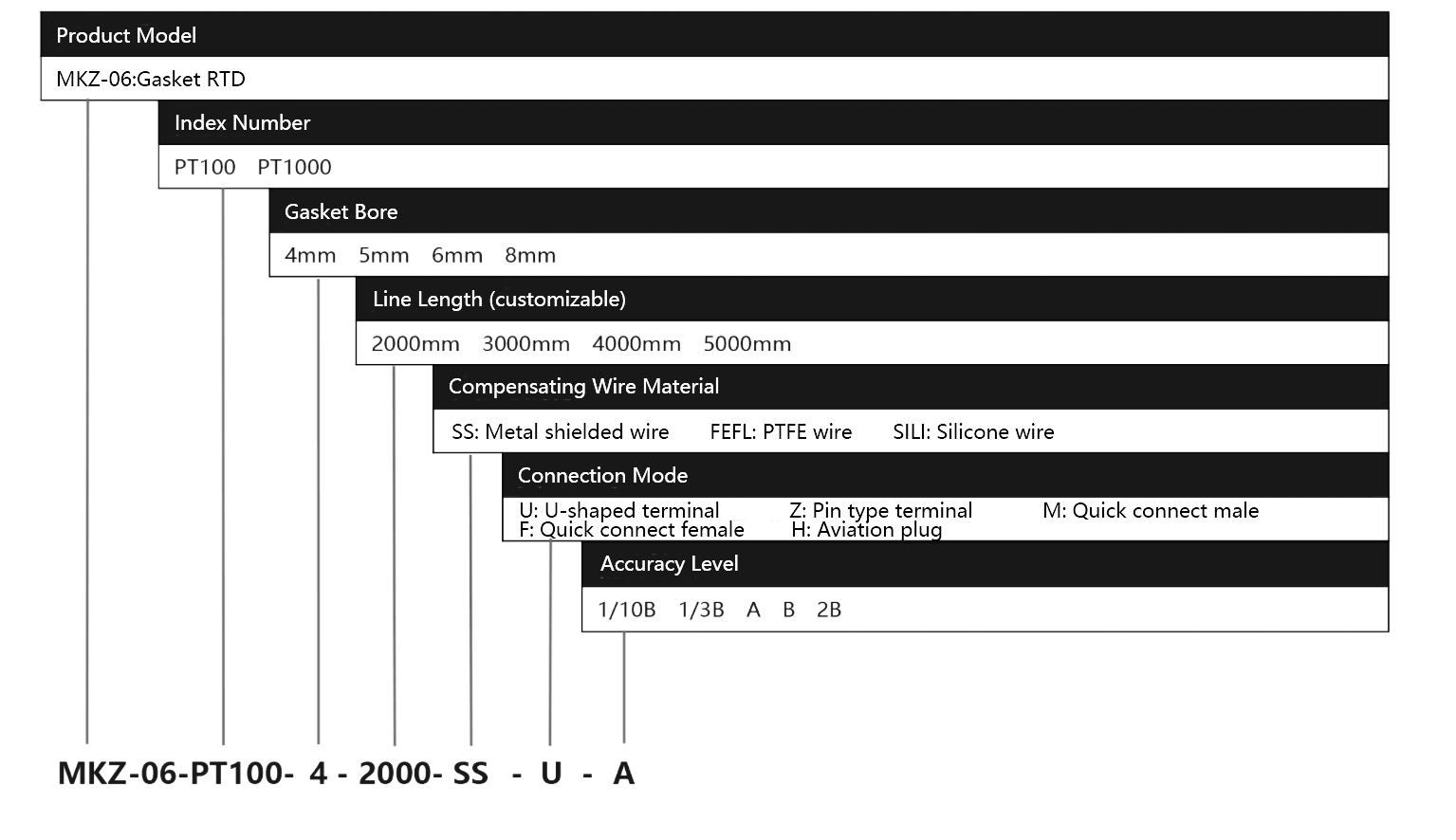

Selection
